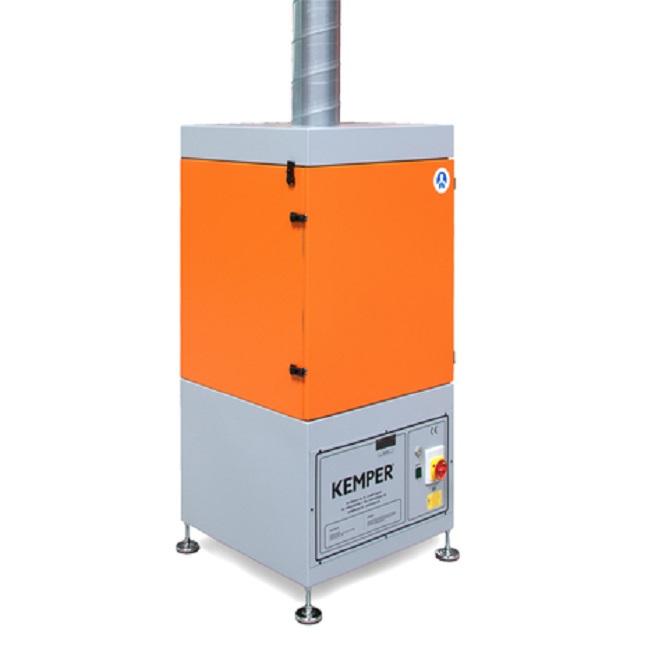

Filter-Cell XL Welding Extractor

KEMPER Filter-Cell XL extraction filter unit with time-controlled, automatic filter cleaning is suitable for extraction via a pipe on exhaust hoods, tables and robot cells. The device is designed for high levels of smoke and dust during non-stop operation. The KemTex® ePTFE membrane filter cartridge for ultra-fine dust particles separates particles even below 0.1 µm.

Applications

• High levels of smoke and dust
• Non-stop operation
• For exhaust hoods, extraction tables and robot cells

Benefits

• High efficiency due to automatic filter cleaning
• Space-saving due to compact design
• Easy installation since unit is delivered ready to plug in ("plug and play")
• Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
• Safe operation by rotation field control

Technical Data

• Extraction capacity - 1000 m³/h

• Max. fan performance - 3000 m³/h

• Dimensions (w x d x h) - 655 x 655 x 1,460 mm
• Weight - 155 kg
• Motor power - 1,5 kW
• Power supply - 3 x 400 V / 50 Hz
• Rated current - 3.2 A
• Noise level - 69 dB(A)
