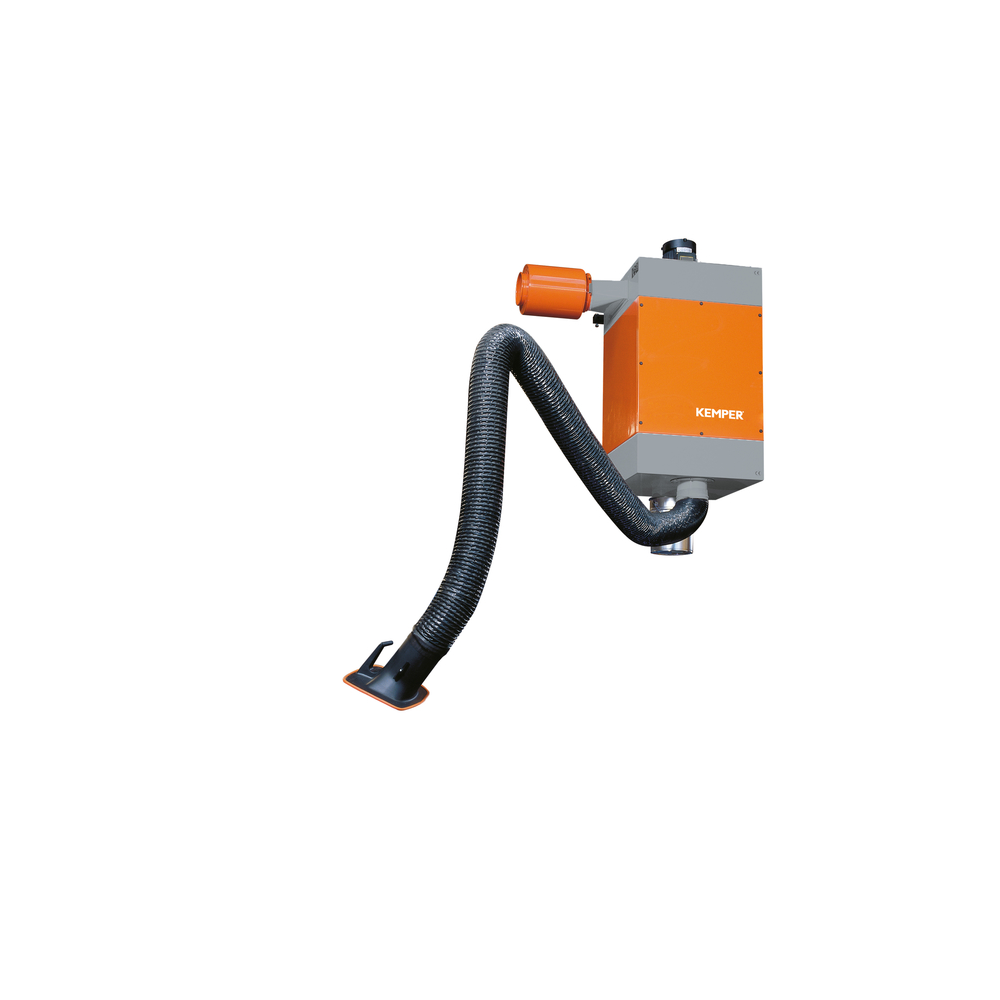

Wall Mounted Cartridge Filter Welding Extractor

Due to its differential pressure-controlled, automatic filter cleaning system, the stationary cartridge filter for welding fume extraction is suitable for high levels of smoke and dust and non-stop operation with low operating costs. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. The two-exhaust arm version with integral dampers allows simultaneous or alternating work in two places with adjustable extraction performance.

Applications

• High levels of smoke and dust
• Non-stop operation

Benefits

• High efficiency due to automatic filter cleaning
• Less need to adjust the exhaust arm due to exhaust hood design
• Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
• Low air consumption due to differential pressure-controlled cleaning

Technical Data

• Extraction capacity - 1,200 m³/h
• Dimensions (w x d x h) - 655 x 655 x 1,355 mm
• Weight - 146 kg
• Motor power - 1,5 kW
• Power supply - 3 x 400 V / 50 Hz
• Rated current - 3.5 A
• Noise level - 71 dB(A)
